New Engines
SV840

Courage PRO

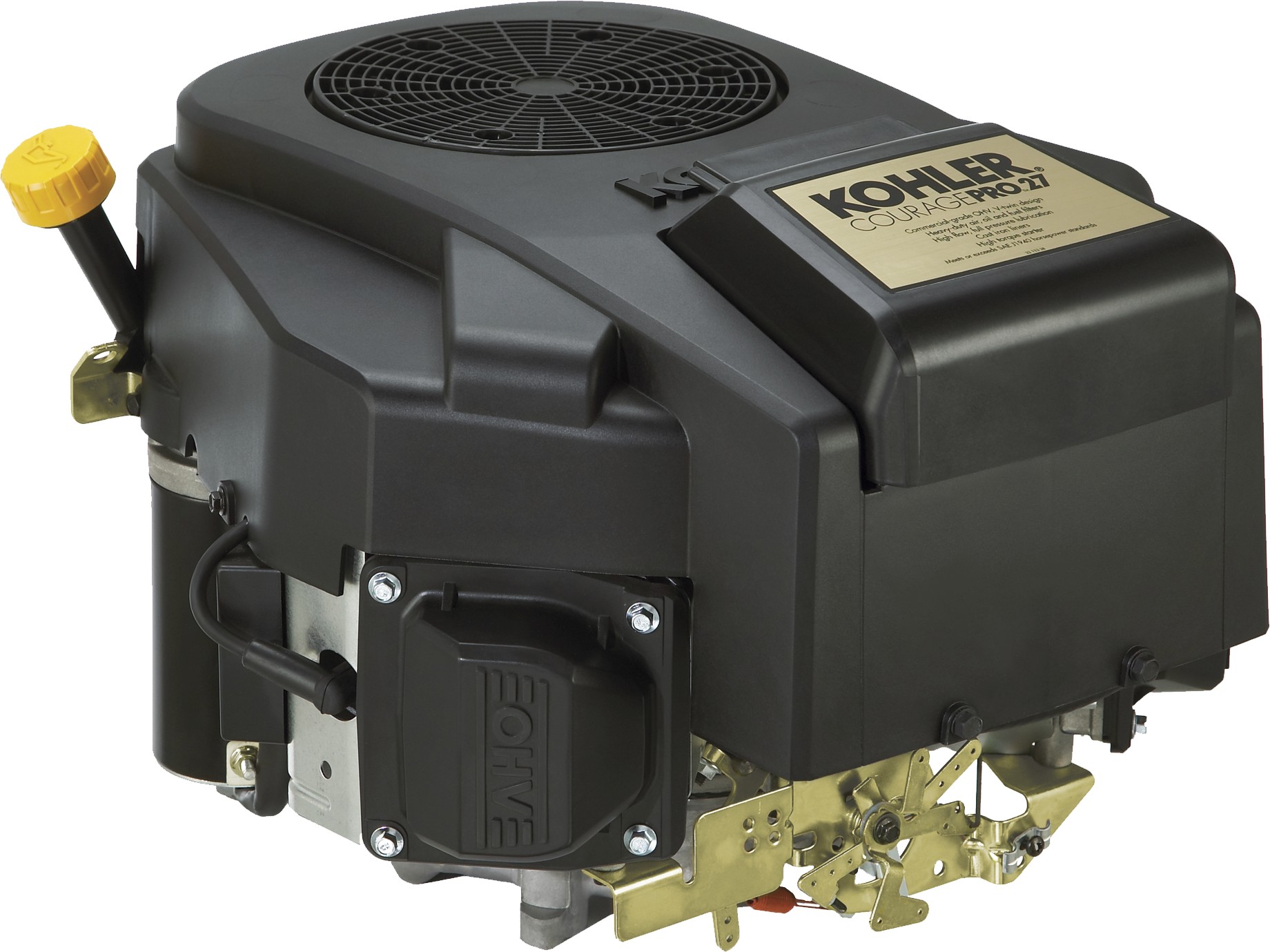

SV840

Designed to meet the demands of even the biggest backyard enthusiasts, KOHLER Courage PRO® V-Twin, has the power to tackle any yard.

HP
Shaft
Cylinders
Cooling
Fuel Type
Status
27 Vertical V-Twin Air Gasoline Current
Overview
Features
Engine Uses
Specs
Overview

Professional Grade Design.

Professional grade engineering for the consumer. Cool-running OHV design and tough cast-iron cylinder bore provides better fuel efficiency, more torque per unit of displacement and means your engine will last longer in harsh mowing conditions - so you can keep your mower longer and avoid costly trips to the repair shop.

Durable, Long Life Design.

Hardened crankshaft bearings are built extra tough for superior strength and added protection under high-load, heavy-debris mowing conditions. The large capacity, professional oil, air and fuel filters provide even better performance under tough conditions for longer engine life.

High Power Performance.

Consistent-Cut™ technology delivers more consistent power to your mower deck in extreme load conditions, maximizing cutting, bagging, and mulching performance. So you can rest assured knowing there will be less clumping and missed areas.

Comfortable Operation.

Tough on grass, easy on you. V-Twin design provides smooth operation and the acoustically dampened air induction system reduces noise for quieter operation. This engine also features a flip-up air cleaner cover that allows for quick inspection and change

Reliable Starting.

High-torque inertia drive starter ensures quick, reliable starting in all conditions.

Increased Efficiency.

Overhead valve design makes KOHLER® engine more fuel efficient and provides more power per displacement while emitting fewer harmful exhaust gasses.

Features

User-Friendly Maintenance.

  • Easy-access oil check and fill
  • Top-mount air filter keeps debris out and allows for quick access and inspection of the air cleaner system
  • Two-year limited warranty

High Power Performance.

  • OHV design for incredible efficiency
  • Dynamically balanced crankshaft provides smooth performance
  • Highly polished main bearings provide added toughness in high-load conditions
  • Consistent-Cut™ technology for higher-quality cut

Reliability and Long Life Design.

  • Cast-iron cylinder liner ensure your engine will last long in harsh conditions
  • Large capacity air cleaner offers extra protection between maintenance intervals
  • Pressurized lubrication with filter ensures the engine is strong even at extreme angles
  • Induction-hardened main crank bearing ensures superior strength to cut through the tough stuff
  • Internally vented carburetors

Quiet, Smooth Operation.

  • V-twin design runs more smoothly and reduces fatigue on the operator
  • Quiet air induction box
  • Modulated cooling fan reduces noise

Easy Dependable Starts.

  • High-torque inertia drive starter ensures quick, reliable starting in all conditions.
Engine Uses
Lawn & Landscape
Riding Mower
Zero Turn Mower

Equipment Types

This engine powers the following equipment:

  • Garden Tractor
  • Mower, Rear Steer Front Mount
  • Yard Tractor
  • Lawn Tractor
  • Rear Engine Rider
  • Garden Tractor
  • Rear Engine Rider
  • Lawn Tractor
  • Yard Tractor
  • Mower, Zero Turn Radius
Specs

Engine Type:

Four-cycle, twin-cylinder, air-cooled, vertical shaft, gasoline, full pressure lubrication with full-flow filter, aluminum head and crankcase with cast iron cylinder liner.

Model
Courage Pro SV840
Max Power @3600 RPM hp (kW) 1 27 (20.1)
Displacement cu in (cc) 44 (725)
Bore in (mm) 3.3 (83)
Stroke in (mm) 2.6 (67)
Max Torque lbs. ft (Nm)1 43 (58.3)
Compression Ratio 9:1
Dry Weight lbs (kg) 91 (41.3)
Oil Capacity U.S. quarts (L) 2 (1.9)
Lubrication Full-pressure lubrication with full-flow filter
Dimensions L x W x H in 18.5 x 17.8 x 14.1
Backpressure Limit 2 50
J1995 Power hp (kW) 3 23.5 (17.5)
J1995 Torque lbs ft (Nm) 3 36.9 (50)
* Length is valve cover to end of blower housing. Width is air cleaner to opposite side. Height is mounting surface to grass screen.
1 Max Power (hp) and Max Torque (lbs ft) specifications for Kohler general purpose engines are rated pursuant to Society of Automotive Engineers (SAE) J1940 based on gross output testing performed according to SAE J1995 without the air cleaner and muffler. Actual engine power and torque are lower and affected by accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, engine speed, ambient operating conditions (temperature, humidity and altitude) and other factors. This J1940 / J1995 rating provides consistent measurement to customers who may want to control the intake and exhaust features of the engine. For more information, contact Kohler Co. Engine Engineering Department. Kohler Co. reserves the right to change product specifications, designs and standard equipment without notice and without incurring obligation.

2 Inches of H20 @ 3600 RPM WOT

3 J1995 power and torque certified by 3rd Party Witness
