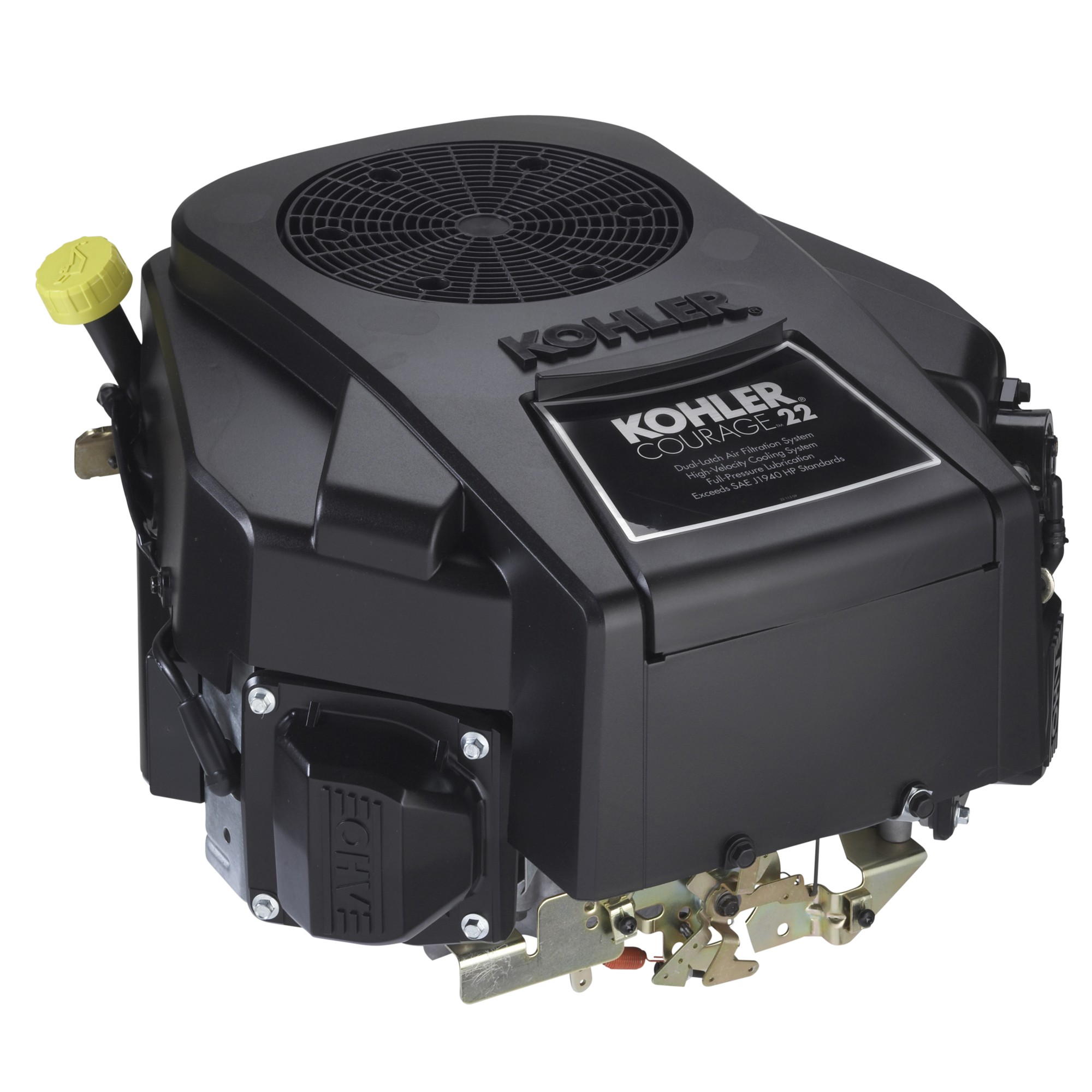

Designed to meet the demands of even the biggest backyard enthusiasts, KOHLER Courage® V-Twin, has the power to tackle any yard.
Professional grade engineering for the consumer. Cool-running OHV design and tough cast-iron cylinder bore provides better fuel efficiency, more torque per unit of displacement and means your engine will last longer in harsh mowing conditions - so you can keep your mower longer and avoid costly trips to the repair shop.
The dual-seal, top- mount air filter keeps debris out of the engine and the internally vented carburetor provides added protection in dirty conditions. A modulated cooling fan reduces noise and optimizes air flow for a longer engine life.
Consistent-Cut™ technology delivers more consistent power to your mower deck in extreme load conditions, maximizing cutting, bagging, and mulching performance. So you can rest assured knowing there will be less clumping and missed areas.
Tough on grass, easy on you. V-Twin design provides smooth operation and the acoustically dampened air induction system reduces noise for quieter operation. This engine also features a flip-up air cleaner cover that allows for quick inspection and change
High-torque inertia drive starter ensures quick, reliable starting in all conditions.
Overhead valve design makes KOHLER® engine more fuel efficient and provides more power per displacement while emitting fewer harmful exhaust gasses.
This engine powers the following equipment:
4-cycle, gasoline, OHV, twin-cylinder, air-cooled, vertical shaft, full pressure lubrication with full-flow filter, aluminum head and crankcase with cast iron cylinder liners.
|J1940 Power hp(kW) 1||22 (16.4)|
|Displacement cu in (cc)||44 (725)|
|Bore in (mm)||3.3 (83)|
|Stroke in (mm)||2.6 (67)|
|Peak Torque lbs. ft (Nm)||41 (55.6)|
|Dry Weight lbs (kg)||91 (41.3)|
|Oil Capacity U.S. quarts (L)||2 (1.9)|
|Lubrication||Full pressure w/full-flow filter|
|Dimensions L x W x H in||18.5 x 17.8 x 13.4|
|Backpressure Limit 2||50|
|J1995 Power hp (kW) 3||19.6 (14.6)|
|J1995 Rated Speed (RPM)||3600|
